Description
Ice-O-Matic CIM0530FA/B40PS Description

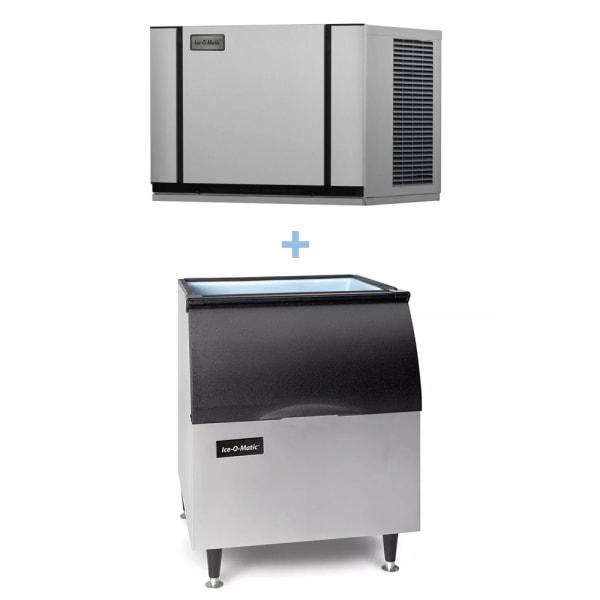

The Ice-O-Matic CIM0530FA full-cube ice maker measures 30.25 inches wide by 24.25 inches deep by 21.25 inches high, and the B40PS bin is 30 inches wide, 31 inches deep, and 371/2 inches high. This air-cooled equipment is cooled by moving fresh air across its condenser. It's self-contained to simplify installation and maintenance.
Producing as much as 561 pounds of ice every 24 hours, the Ice-O-Matic CIM0530FA/B40PS is constructed of environmentally friendly components such as recyclable parts and BPA-free plastic. To simplify cleaning and lengthen sanitation, this piece of equipment is built with a plastic foodzone that eliminates nooks and crannies. Its PURE ICE antimicrobial protection inhibits bacterial growth and a smart LED light alerts the operator when the machine needs cleaning.
Ice Machine Details
- Part of the Elevation Series(tm)
- Maximum production capacity: 561 lbs. of ice per 24 hours
- AHRI production capacity: 432 lbs. of ice per 24 hours
- Produces full-cube ice
- Environmentally friendly construction incorporates BPA-free plastic and recyclable parts
- Plastic foodzone streamlines cleaning by eliminating nooks and crannies
- PURE ICE antimicrobial protection prevents the spread of bacteria
- Smart LED light signals when cleaning is required
- 1-touch controls optimize sanitizing and descaling
- Snap-in-and-out components can be cleaned in a dishmachine
- Hot air discharges from side and top for quick installation
- Universal Smart Harness(tm) control board facilitates servicing and installation
- Digital diagnostics deliver status information
- Common configuration and universal components
- Heat displacement: 6,252 BTU
Product Features

Ice Bin Details
- 344-lb. storage capacity
- Durable aluminum exterior finish
- Poly bin liner is insulated to preserve cold temperatures
- Heavy-duty, slope front door with top hinge
- Supported by adjustable, 6-in. legs
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 30 in. W x 31 in. D x 37.5 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
Warranty Offer
Pair your Ice-O-Matic ice maker with an OEM filter at purchase and change the cartridge regularly to get a 7-year evaporator warranty.

Consult this ice makers buyers' guide for additional information.
Elevation Series(tm) Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 561 lb production/24 hours at 70deg/50deg (432 lb at 90deg/70deg), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6" legs, NSF
Spec Attribute | Spec Value |
---|---|
Manufacturer | Ice-O-Matic |
Access | Lift Up Door |
Compressor Type | Air Cooled |
Depth (in) | 31 |
Height (in) | 58.75 |
Hertz | 60 |
Ice Type | Full Cube |
Phase | 1 |
Product Type | Ice Makers & Bins |
Production Range (lb/day) | 550-899 lb |
Voltage | 115 |
Warranty | 3-year Parts & Labor; 5-year Compressor |
Width (in) | 30.25 |
24 Hr. Production (lb) | 561 |
Bin Capacity (lb) | 344 |
Special Features | Antimicrobial |
Product | Ice Makers with Bins |
Series | Elevation Series™ |
Weight | 258.00 |
